Hdmi Range Extender Single Lan 120m

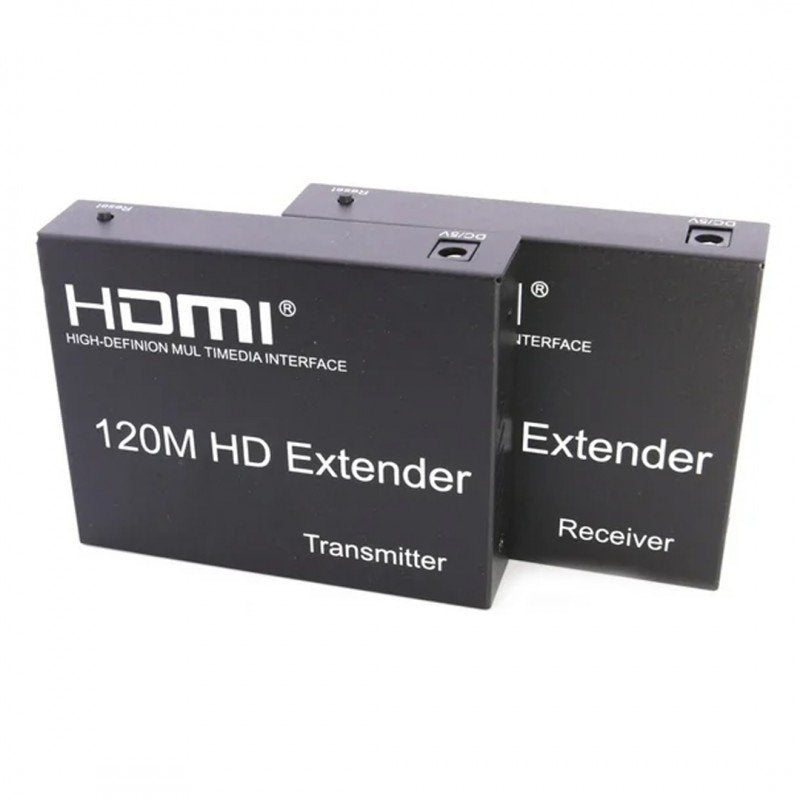

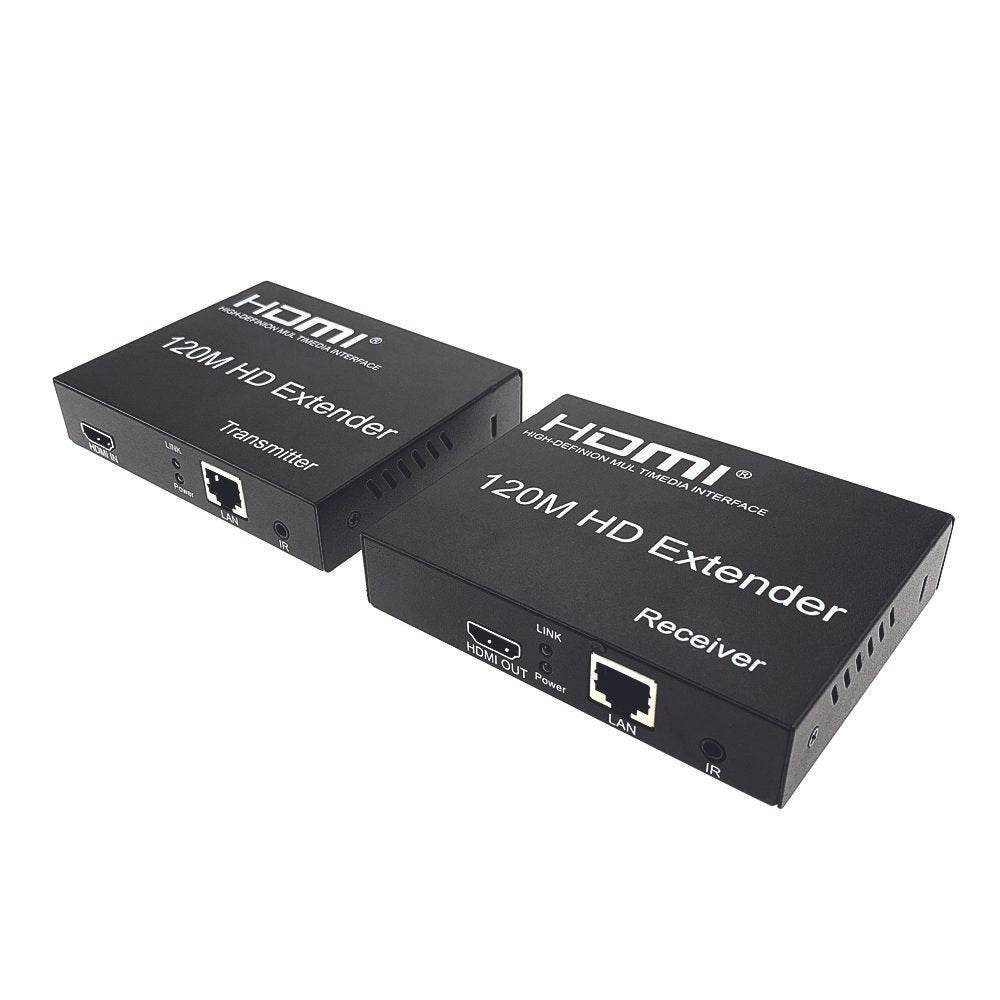

HDMI Range Extender Single LAN 120M

HDMI Extender & is designed to convert HDMI signal to standard TCP/IP and transmit by internet cable or LAN. With the advantage of TCP/IP standard, it can transmit HDMI signal source from HD STB, DVD, Sky HD& box & HDMI display card, etc to HD projector, DLP, LCD, LED, and other audiovisual equipment.

• Extend HDMI single with a single network cable.
• up to 120m/394ft transmission distance.
• full HD 180P high-quality delivery.
• transfer by existing CAT5/5e/6 network cable.
• Allows being distributed by network routers for cascade connection.

HDMI Range Extender Single LAN 120m Features:

Auto Adjustment to Match Cable Length

Adjust the specifications automatically for different cable lengths 1-160m (10m 20m 30m 40m 50m 60m 70m 80m 90m 100m 110m 120m 130m 140m 150m 160m) to achieve the best display.

• Apply M-JPEG technology to process image compressing. The loss of image quality is very small;480i@50Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz 1080p@24Hz
• Supported HDMI format: 480i@50Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz&1080p@24Hz
• HDCP Compatible.
• It can transmit HDMI 1080P signal to above 120m by using UTP Cat5e/6.
• It can transmit by LAN.
• Support LAN bandwidth: 100M
• Extend 120m longer by adding one more Ethernet router.
• The data could be & transmitted over a switch, router, and another Ethernet device, and extend the transfer & distance to over 20km.
• It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from of SENDER & support a maximum of RECEIVER (over Switch)
