Hdmi Splitter 16 Port 2k 4k
Pickup currently not available

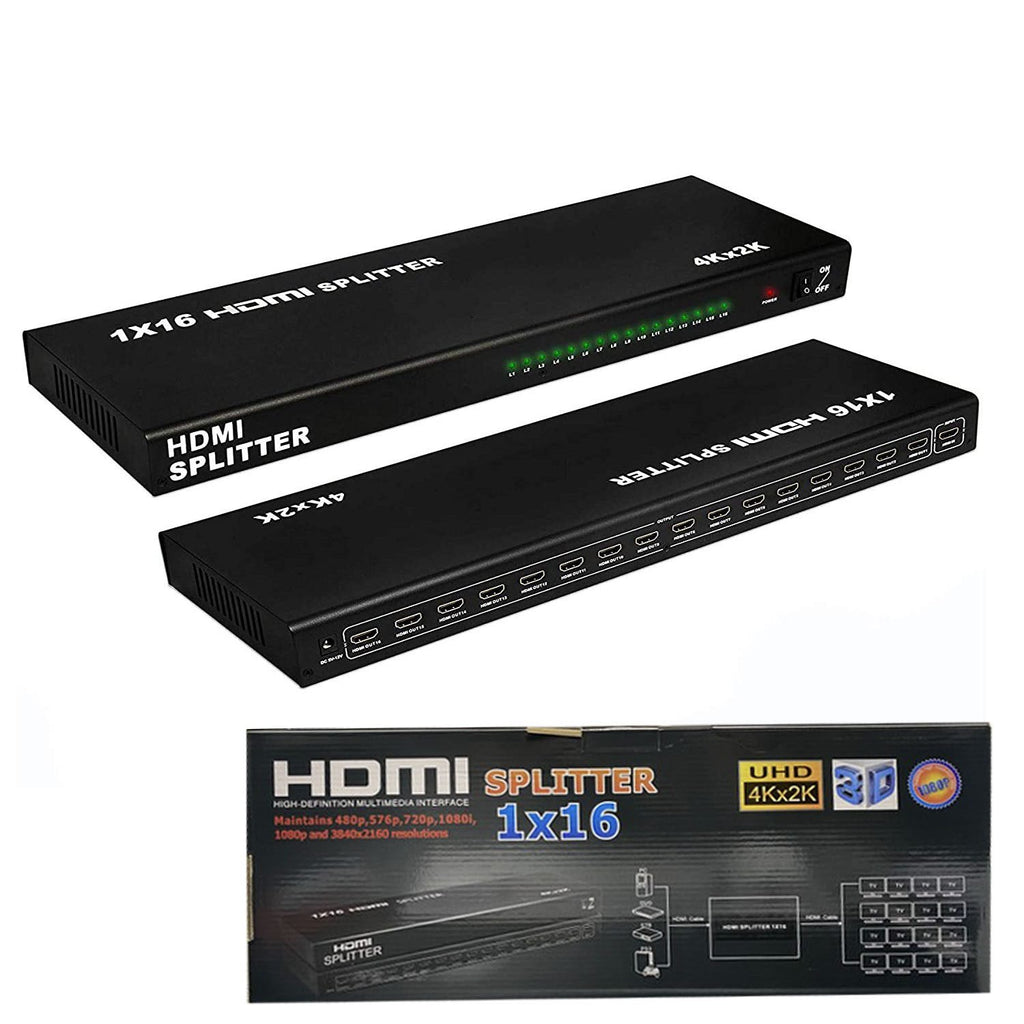

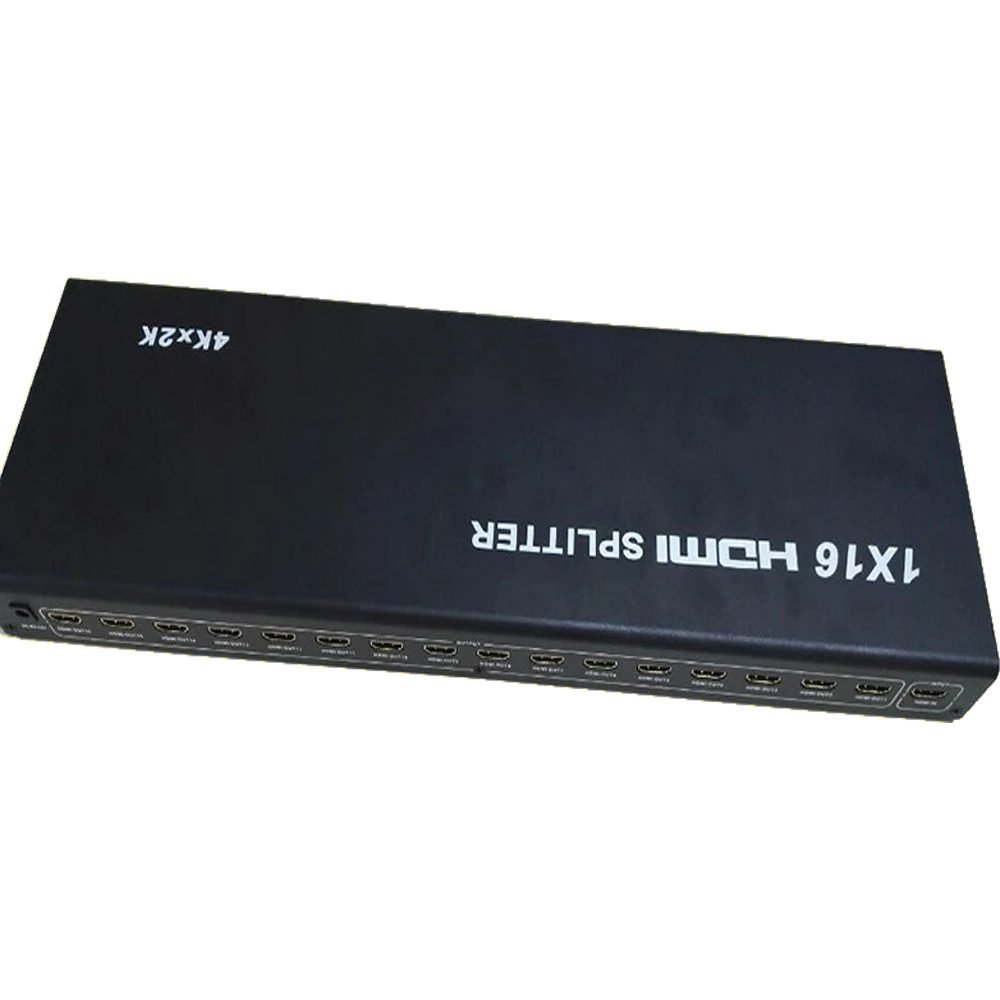

HDMI Splitter 16 Port 2K 4K
his high-performance HDMI splitter provides 1 HDMI into 16 HDMI outputs and supports 4K2K, Full 3D, 12-bit Deep color as well as High DefinitionLossless Audio. With its 3Gbps bandwidth and the additional features of the latest HDMI standards, you can be sure of great HDMI distribution.
It supports almost all HDMI-enabled equipment, such as DVD players, Amazon Fire TV, Apple TV, HD TV, HD Projector, satellite set-top boxes, and other HDMI devices. Bring great convenience to multimedia teaching, video conferences, training, product displays, and so on.
HDMI Splitter 16 Port 2k 4k Specifications:
- Input port: 1 x HDMI Input Port
- Output port: 16 x HDMI Output Ports
- HDMI version: HDMI 1.4b
- HDMI resolution: up to 3840*2160/30Hz
- Support video format: 8/10/12 bit deep color
- Support audio format: DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD
- Max bandwidth: 320MHz
- Max baud rate: 3.4Gbps
- Input cable distance:(1080p resolution) ≤10m,(4K resolution)≤5m AWG26 HDMI standard cable
- Output cable distance: (1080p resolution) ≤15m,(4K resolution)≤10m AWG26 HDMI standard cable
- Max working current: 500mA
- Power adapter format: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/2A
- Operating Temperature Range: -15 to +55℃
- Operating Humidity range: 5 to 90%RH (No Condensation)
- Dimension (L x W x H): 18.11’’x5.90’’x1.57’’
- Weight:1680g Operating and Connecting:
- 1. Connect 1 HDMI cable from HDMI source devices into HDMI Splitter input.
- 2. Connect 16 HDMI cables from each display (monitors or projectors) into the HDMI Splitter outputs.
HDMI Splitter Package Includes:
- 1*1 x 16 Port HDMI Splitter
- 1*Power Adapter
- 1*User Manual
